KeyTec® TR-FRET Human IL23/IL23R Binding Assay Kit
Size:
Price: $ Inquiry
CAT.: A1070106D
The KeyTec® Human TR-FRET IL23/IL23R Binding Assay Kit is designed for high-throughput screening of small-molecule inhibitors, peptides, or antibodies that block the interaction between IL23 and IL23R proteins. This kit utilizes KeyTec® TR-FRET technology, offering advantages such as simplicity, speed, and high accuracy.
As illustrated in the principle diagram below, the KeyTec® TR-FRET Solar Eu®¹-labeled anti-Tag 1 antibody specifically recognizes IL23 protein carrying Tag 1, while the KeyTec® TR-FRET LA®²-labeled Streptavidin recognizes biotinylated IL23R protein (AVI-Biotin). When IL23 binds to IL23R, Solar Eu and LA are brought into close proximity, enabling energy resonance transfer between the donor and acceptor upon external light excitation. The interaction level between IL23 and IL23R is determined by measuring the signal intensity at a specific wavelength (665 nm). Consequently, compounds, peptides, or antibodies that disrupt the IL23–IL23R interaction will result in a decrease in TR-FRET signal.

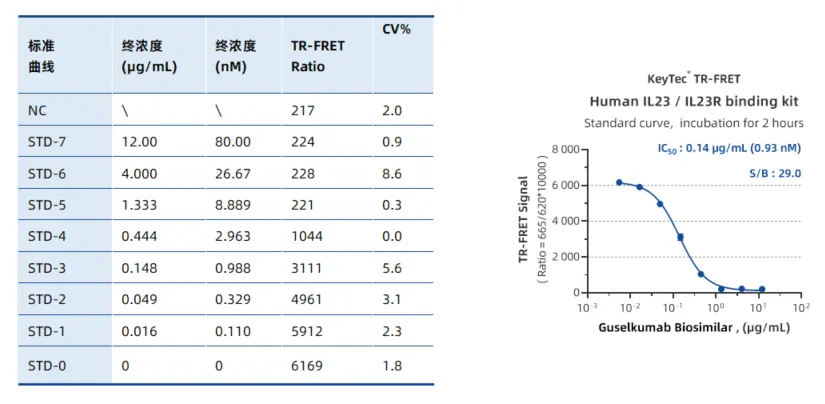

Standard Blocker Validation Results

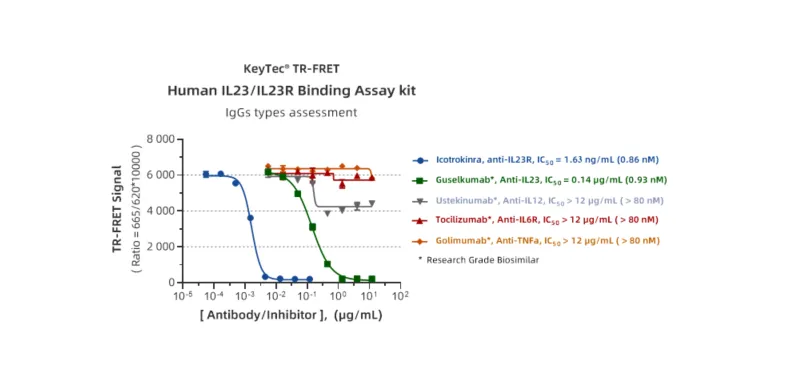

Test Results of Different Blockers
| CAT. | Description | Size |
| A1070106D | KeyTec® TR-FRET Human IL23/IL23R Binding Assay Kit | 100 tests |
|
• 1 vial of 20 µL/vial IL23 / IL23R binding standard • 1 vial of 8 µL/vial Tag1-IL23 • 1 vial of 8 µL/vial IL23R-Biotin • 1 vial of 5 µL/vial Anti-Tag1–Solar Eu • 1 vial of 5 µL/vial Streptavidin–LA • 2 vials 2 mL/vial Binding Assay Diluent Buffer • 1 vial 2 mL/vial Solar Eu Detection Buffer |
||
| Certificate of Analysis | Limitations | Storage Conditions |
| LOT. | For research use only |
-60 ℃及以下 |
The KeyTec® Human TR-FRET IL23/IL23R Binding Assay Kit is designed for high-throughput screening of small-molecule inhibitors, peptides, or antibodies that block the interaction between IL23 and IL23R proteins. This kit utilizes KeyTec® TR-FRET technology, offering advantages such as simplicity, speed, and high accuracy.
As illustrated in the principle diagram below, the KeyTec® TR-FRET Solar Eu®¹-labeled anti-Tag 1 antibody specifically recognizes IL23 protein carrying Tag 1, while the KeyTec® TR-FRET LA®²-labeled Streptavidin recognizes biotinylated IL23R protein (AVI-Biotin). When IL23 binds to IL23R, Solar Eu and LA are brought into close proximity, enabling energy resonance transfer between the donor and acceptor upon external light excitation. The interaction level between IL23 and IL23R is determined by measuring the signal intensity at a specific wavelength (665 nm). Consequently, compounds, peptides, or antibodies that disrupt the IL23–IL23R interaction will result in a decrease in TR-FRET signal.
Standard Blocker Validation Results
Test Results of Different Blockers
| CAT. | Description | Size |
| A1070106S | KeyTec® TR-FRET Human IL23/IL23R Binding Assay Kit | 500 tests |
|
• 1 vial of 50 µL/vial IL23 / IL23R binding standard • 1 vial of 40 µL/vial Tag1-IL23 • 1 vial of 40 µL/vial IL23R-Biotin • 1 vial of 25 µL/vial Anti-Tag1–Solar Eu • 1 vial of 25 µL/vial Streptavidin–LA • 1 bottle 50 mL/bottle Binding Assay Diluent Buffer • 1 bottle 30 mL/bottle Solar Eu Detection Buffer |
||
| Certificate of Analysis | Limitations | Storage Conditions |
| LOT. | For research use only |
-60 ℃及以下 |
The KeyTec® Human TR-FRET IL23/IL23R Binding Assay Kit is designed for high-throughput screening of small-molecule inhibitors, peptides, or antibodies that block the interaction between IL23 and IL23R proteins. This kit utilizes KeyTec® TR-FRET technology, offering advantages such as simplicity, speed, and high accuracy.
As illustrated in the principle diagram below, the KeyTec® TR-FRET Solar Eu®¹-labeled anti-Tag 1 antibody specifically recognizes IL23 protein carrying Tag 1, while the KeyTec® TR-FRET LA®²-labeled Streptavidin recognizes biotinylated IL23R protein (AVI-Biotin). When IL23 binds to IL23R, Solar Eu and LA are brought into close proximity, enabling energy resonance transfer between the donor and acceptor upon external light excitation. The interaction level between IL23 and IL23R is determined by measuring the signal intensity at a specific wavelength (665 nm). Consequently, compounds, peptides, or antibodies that disrupt the IL23–IL23R interaction will result in a decrease in TR-FRET signal.
Standard Blocker Validation Results
Test Results of Different Blockers
| CAT. | Description | Size |
| A1070106L | KeyTec® TR-FRET Human IL23/IL23R Binding Assay Kit | 5,000 tests |
|
• 2 vials of 50 µL/vial IL23 / IL23R binding standard • 1 vial of 400 µL/vial Tag1-IL23 • 1 vial of 400 µL/vial IL23R-Biotin • 1 vial of 250 µL/vial Anti-Tag1–Solar Eu • 1 vial of 250 µL/vial Streptavidin–LA • 1 bottle 200 mL/bottle Binding Assay Diluent Buffer • 1 bottle 120 mL/bottle Solar Eu Detection Buffer |
||
| Certificate of Analysis | Limitations | Storage Conditions |
| LOT. | For research use only |
-60 ℃及以下 |
